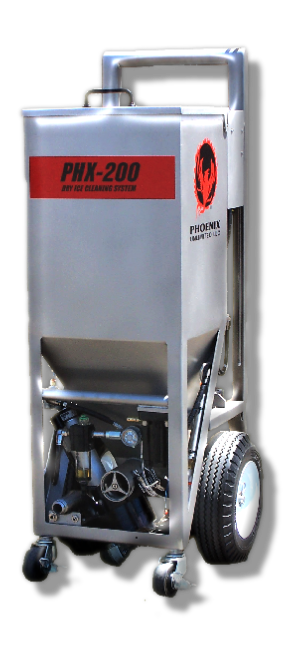

The Phoenix PHX-200 High Pressure, Pneumatic Dry Ice Blaster.  Powerful and Aggressive with blasting capabilities up to 250 psi.  Maintenance is simple with easy to follow graphical users guide.

Quick Air Hose Connection Convenient front hook-up with a single blast hose that is easily maneuvered.

Ergonomic Controls The angled control panel, with easy-to-understand controls, provides easy viewing and accessibility.

Dry Ice Capacity Large hopper capacity is fast loading and eliminates frequent refilling.
Safety Interlocks and Guards The safety interlock and guards prevent accidental contact with any moving parts. 100% pneumatic operation eliminates electrical shock hazards.
Navigates Easily 18” Wide body easily fits through tight doorways and tight spaces. The unit is lightweight and the large rubber tires negotiate rough surfaces.
Durable Construction Reinforced stainless steel construction and molded rubber casters are very durable. Unit is operational in any weather environment.
Quick Release Airlock The quick-release airlock makes for faster cleaning and inspection.

Minimal Maintenance Built-in separator/filter for added protection. Easy access to components and minimal downtime for periodic maintenance.

Increased Aggression Blast pressures of up to 250 psi allows for a wider range of applications and increased blasting aggression.
Customer Service Technical assistance is available 24/7 year round.

SPECIFICATIONS
Dimensions: 18” x 20” x 47” (W x L x H) (47cm x 51cm x 120cm)
Dry Weight: 165 lbs. (74.84 kg)
Hopper Capacity: Over 100 lbs. (45.5 kg) of pellets
Ice Consumption Range: 0.5-5 lbs. (0.23 kg - 3.2 kg)/min.
Supply Air Pressure: 70 psi - 250 psi (4.8 - 8.6 bar)
Air Consumption Range: 100 CFM - 450 CFM
Blast Pressure Range: 50 psi - 250 psi (2.8 - 17.2 bar)
Inlet Air Temperature: 140° F (60° C) maximum Inlet Air Dew Point: Should not exceed +40 degrees F (+4.4 degrees C)
Inlet Air Connection: 1” NPT

Phoenix PHX-200 - High Pressure, Pneumatic Dry Ice Blaster

PHX-200 - High Pressure Dry Ice Blasting Machine
