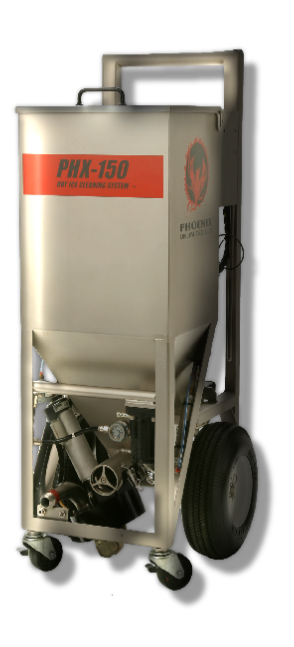

The Phoenix PHX-150 Pneumatic Dry Ice Blaster.  Economical, Powerful and Aggressive with best in class performance.  Maintenance is simple with easy to follow graphical users guide.

Quick Air Hose Connection Convenient front hook-up with a single blast hose that is easily maneuvered.

Ergonomic Controls The angled control panel with easy-to-understand controls provides easy viewing and accessibility.

Dry Ice Capacity Large hopper capacity is fast loading and eliminates frequent refilling.
Safety Interlocks and Guards The safety interlock and guards prevent accidental contact with any moving parts. 100% pneumatic operation eliminates electrical shock hazards.
Navigates Easily 14” Wide body easily fits through tight doorways and tight spaces. The unit is lightweight and the large rubber tires negotiate rough surfaces.
Durable Construction Reinforced stainless steel construction and molded rubber casters are very durable. Unit is operational in any weather environment.
Quick Release Airlock The quick-release airlock makes for faster cleaning and inspection.

Minimal Maintenance Built-in separator/filter for added protection. Easy access to components and minimal downtime for periodic maintenance.
Customer Service Technical assistance is available 24/7 year round.

SPECIFICATIONS
Dimensions: 18” x 20” x 47” (W x L x H) (47 cm x 51 cm x 120 cm)
Dry Weight: 140 lbs. (63 kg)
Hopper Capacity: Over 100 lbs. (45.5 kg) of pellets
Ice Consumption Range: 0.5-5 lbs. (0.23 kg - 2.3 kg)/min.
Supply Air Pressure: 70 psi - 125 psi (4.8 - 8.6 bar)
Air Consumption Range: 100 CFM - 250 CFM
Blast Pressure Range: 50 psi - 125 psi (2.8 - 8.6 bar)
Inlet Air Temperature: 140° F (60° C) maximum
Inlet Air Connection: 1” FNPT

Phoenix PHX-150 - Pneumatic Dry Ice Blaster

PHX-150 - Dry Ice Blasting Machine

Data Sheet ...
